The P‑TAS,
part by part

Never seen before, so here it is up close. Every part of the P‑TAS labelled, then the P‑TAS mounted and working.

01 The P‑TAS, labelled

Know every part at a glance

A production P‑TAS in matte black on a Polaris Sportsman. Tap a number to see what it is.

A production P-TAS in matte black mounted on the front rack of a red Polaris quad bike, carrying a scoped rifle, with each part numbered 1 2 3 4 5 6 7
  1. Kolpin Rhino Grip Pro stock restLockable butt-stock rest on your shooting side. It is also the stopper at that end of the rails.
  2. Swivel ball head360° rotation and extreme tilt, with a quick-release receiver taking three rifle mount standards.
  3. Sliding carriage plateRides the two double-width roller bearings for 800 mm of left-to-right target tracking.
  4. End stop capsCapped on one end only — the Kolpin stock rest does the job at the other.
  5. Stainless steel plated rails1000 mm and 800 mm. The 1000 mm rail always sits closest to the shooter.
  6. Alloy plate, tapered endThe taper sets the hand: right for a right-hander, flipped for a left-hander.
  7. 12V switch leadRuns up to the two self-centering push buttons on the handlebars. Underneath it all sits the 12-volt electric elevator.

02 The parts

Every P‑TAS part, on its own

Tap any photo to see it full size. Some of these were shot on the bare-metal development prototype, before powder coat — the mechanism is the same one in every production P‑TAS.

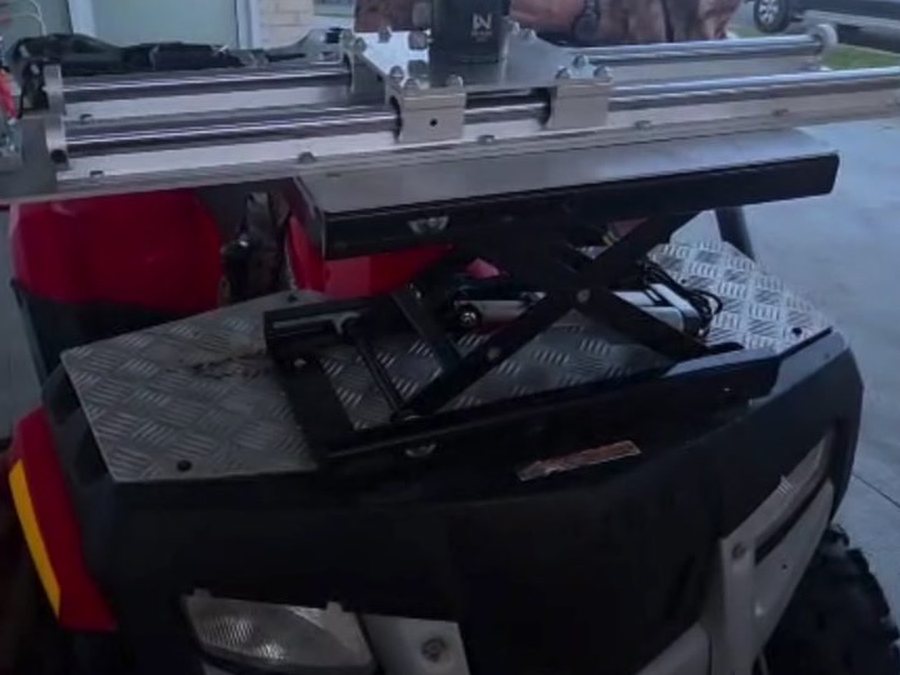

01 12-volt powered electric elevator on the P-TAS
12-volt powered electric elevatorThe motorised scissor lift, raised. It takes the whole P‑TAS carriage from 100 mm up to 300 mm and is rated to 80 kg.

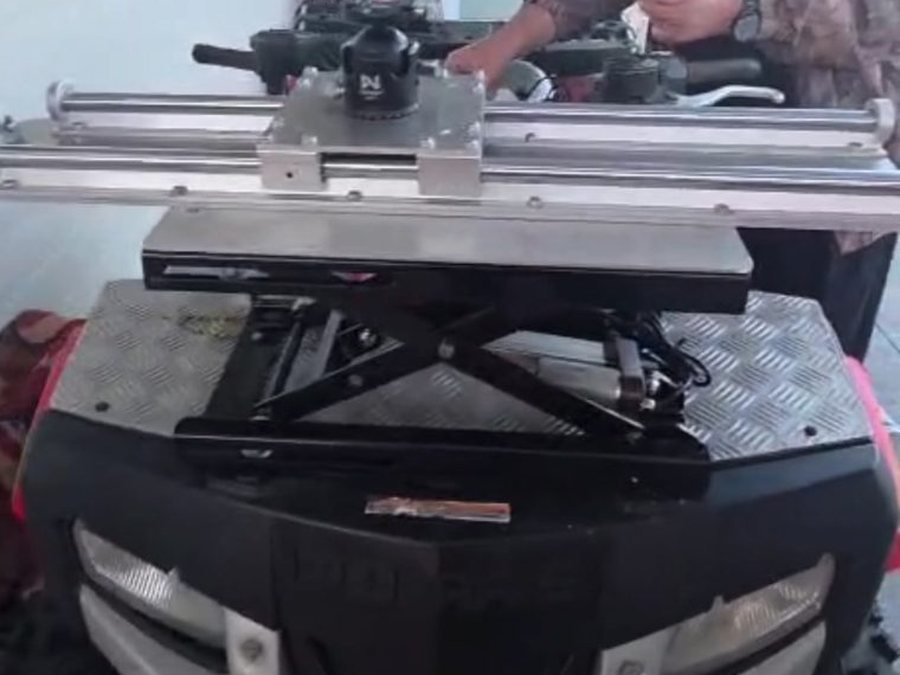

02 Elevator lowered — stowed height on the P-TAS
Elevator lowered — stowed heightThe same scissor lift down at its lowest, 100 mm. This is how the P‑TAS rides when you are on the move.

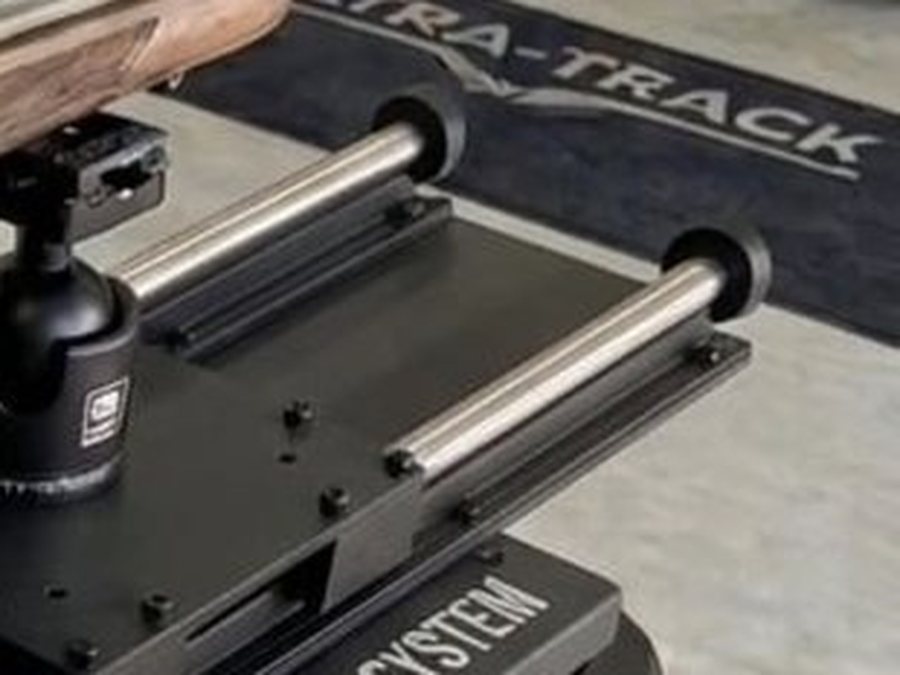

03 Stainless steel plated rails + end stop caps on the P-TAS
Stainless steel plated rails + end stop capsThe 1000 mm and 800 mm rails, capped on one end. 800 mm of left-to-right travel to track a target.

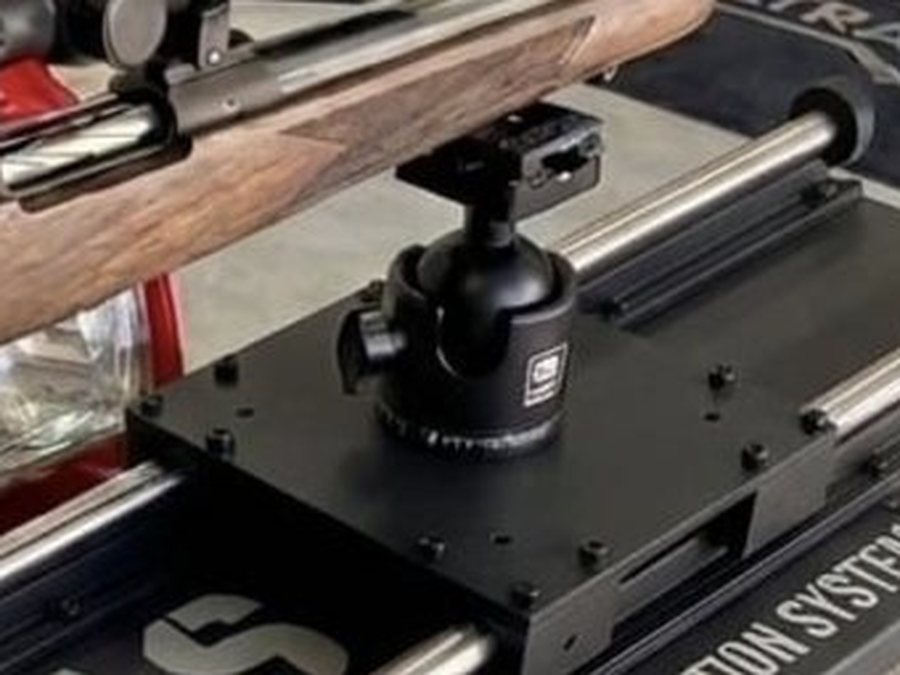

04 Swivel ball head on the alloy plate on the P-TAS
Swivel ball head on the alloy plateProfessional-grade swivel ball head, as used on hunting tripod stands: 360° rotation and extreme tilt, with a quick-release receiver.

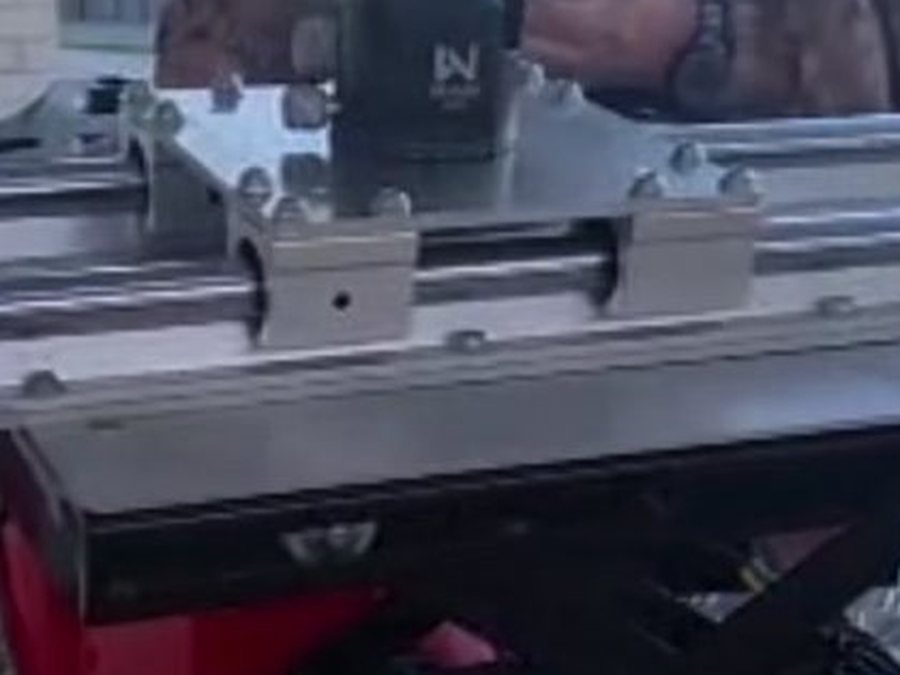

05 Double-width roller bearings on the P-TAS
Double-width roller bearingsOnly two needed on the Mark 2 P‑TAS — wide, double-width rollers fixed to the alloy plate with countersunk screws.

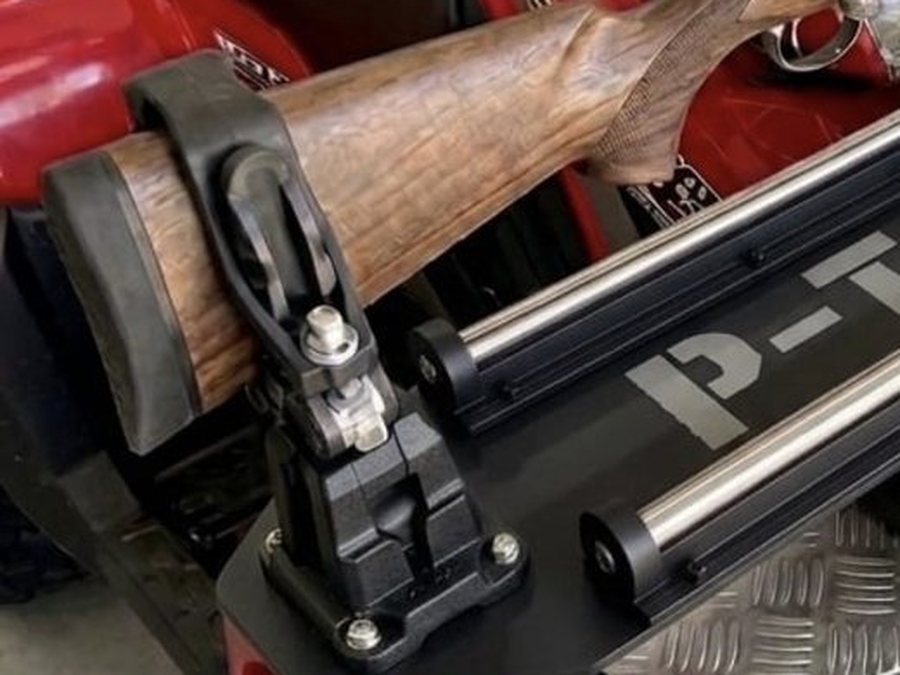

06 Kolpin Rhino Grip Pro stock rest on the P-TAS
Kolpin Rhino Grip Pro stock restLockable butt-stock rest. It mounts on your shooting side and doubles as the stopper at that end of the rails.

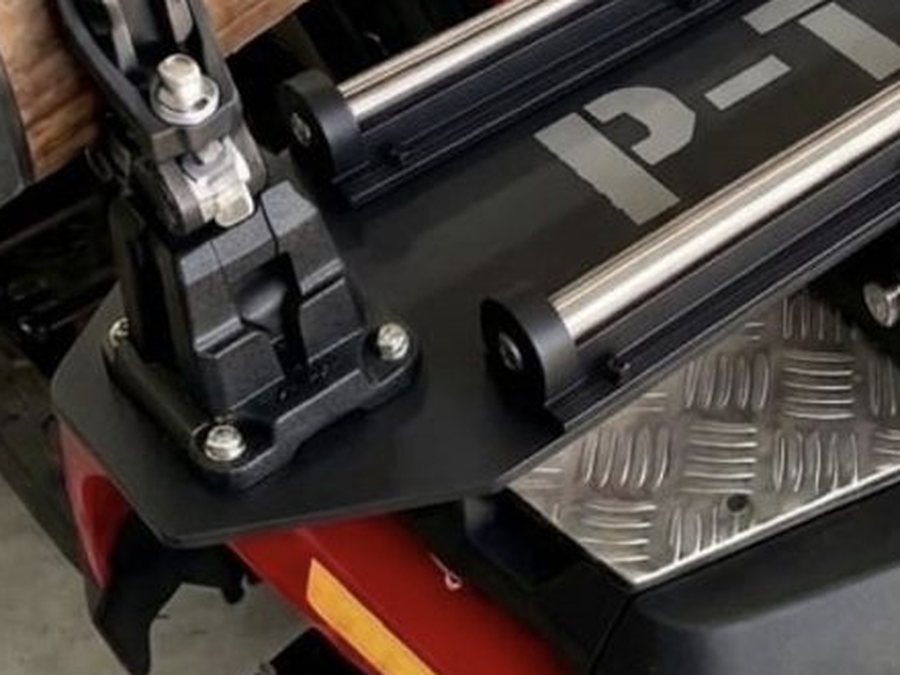

07 Alloy plate — the tapered end on the P-TAS
Alloy plate — the tapered endTaper on the right is the right-handed build; flip the plate for a left-hander. Handedness is set at assembly.

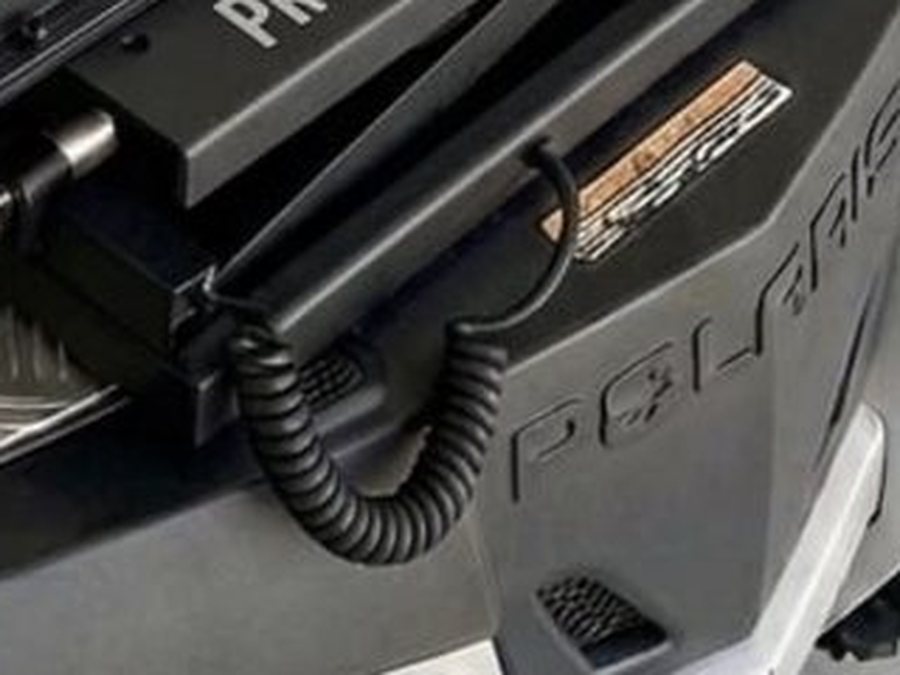

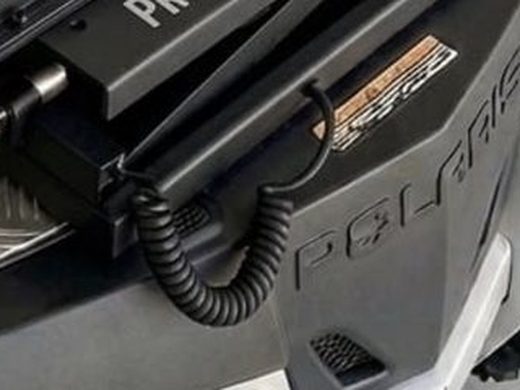

08 12V switch lead to the handlebars on the P-TAS
12V switch lead to the handlebarsThe coiled lead that runs up to the two self-centering push-button switches — one up, one down.

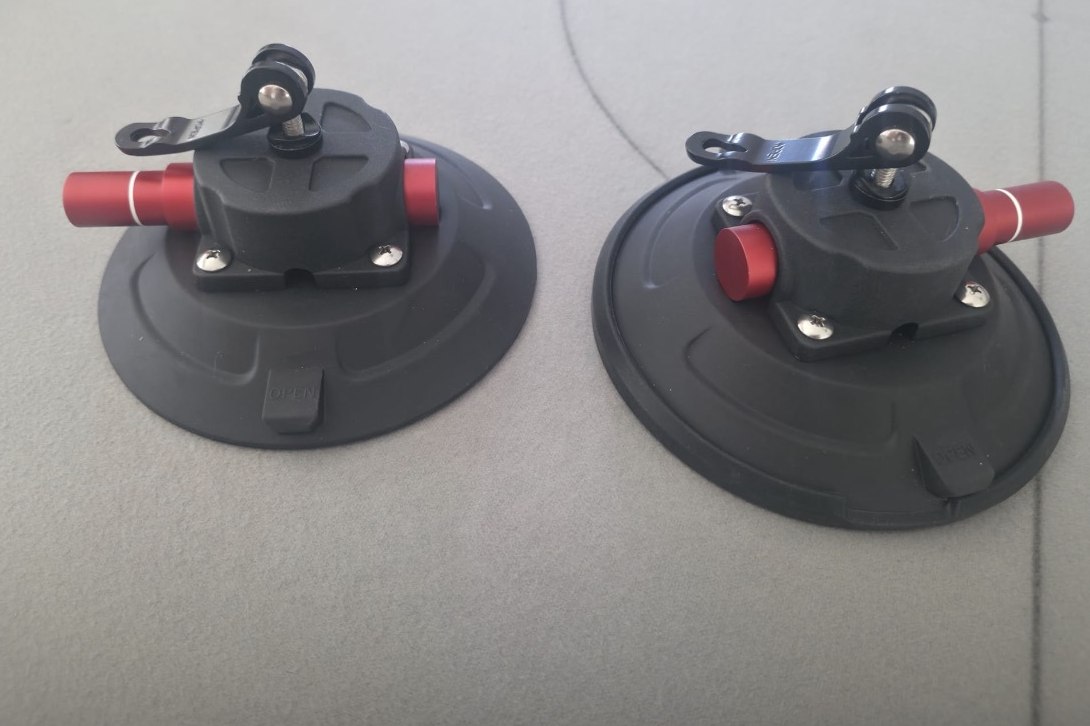

09 Two 6-inch marine-grade suction mounts on the P-TAS
Two 6-inch marine-grade suction mountsIncluded with every P‑TAS. They attach into the slots for roof mounting, or bonnet mounting for target practice and zeroing a scope.

03 In action

The P‑TAS, mounted and working

Photos and footage of the P‑TAS on the bike. Drone footage of the quad and the P‑TAS out in the field is being shot now — it lands here the moment it is ready.

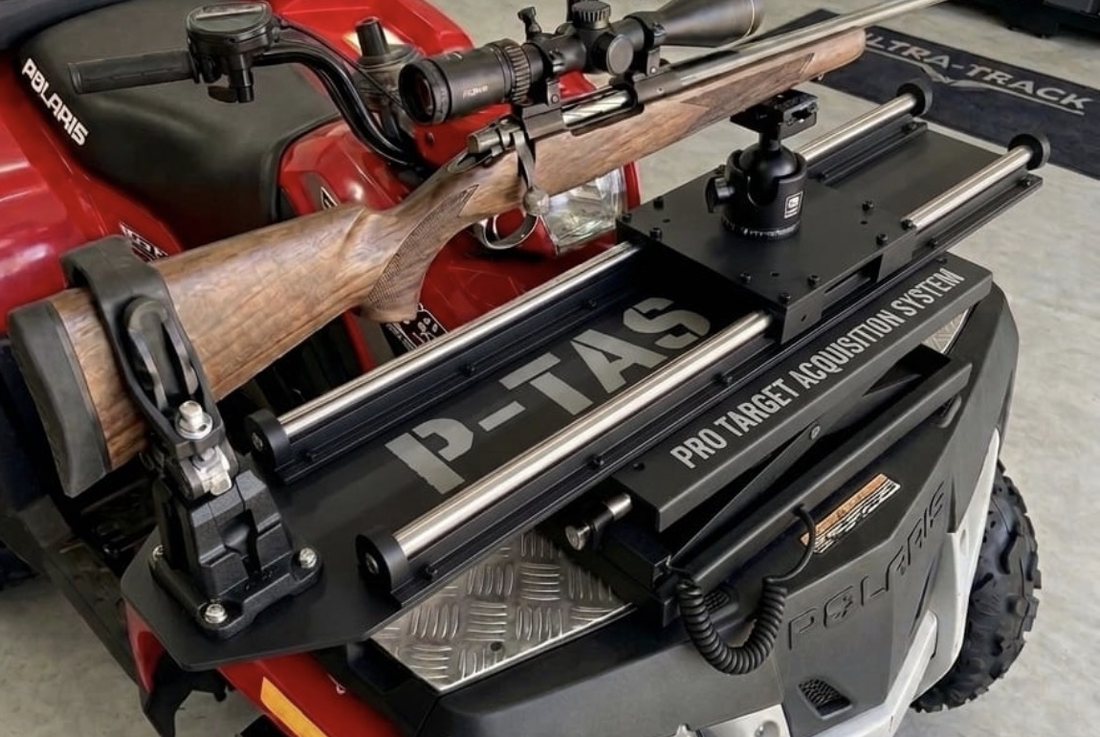

P-TAS — Matte Black, mounted
P‑TAS — Matte Black, mountedProduction colour on a Polaris Sportsman, rifle on the ball head and in the Kolpin stock rest.

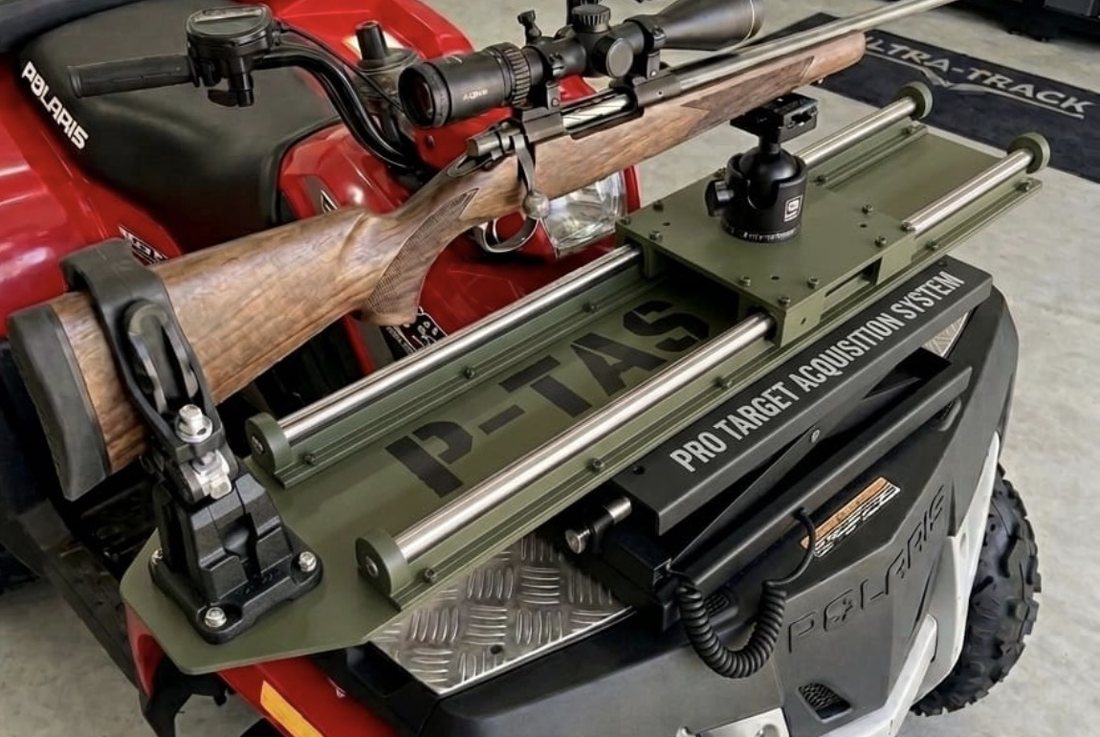

P-TAS — Olive Green
P‑TAS — Olive GreenSame P‑TAS, olive green powder coat.

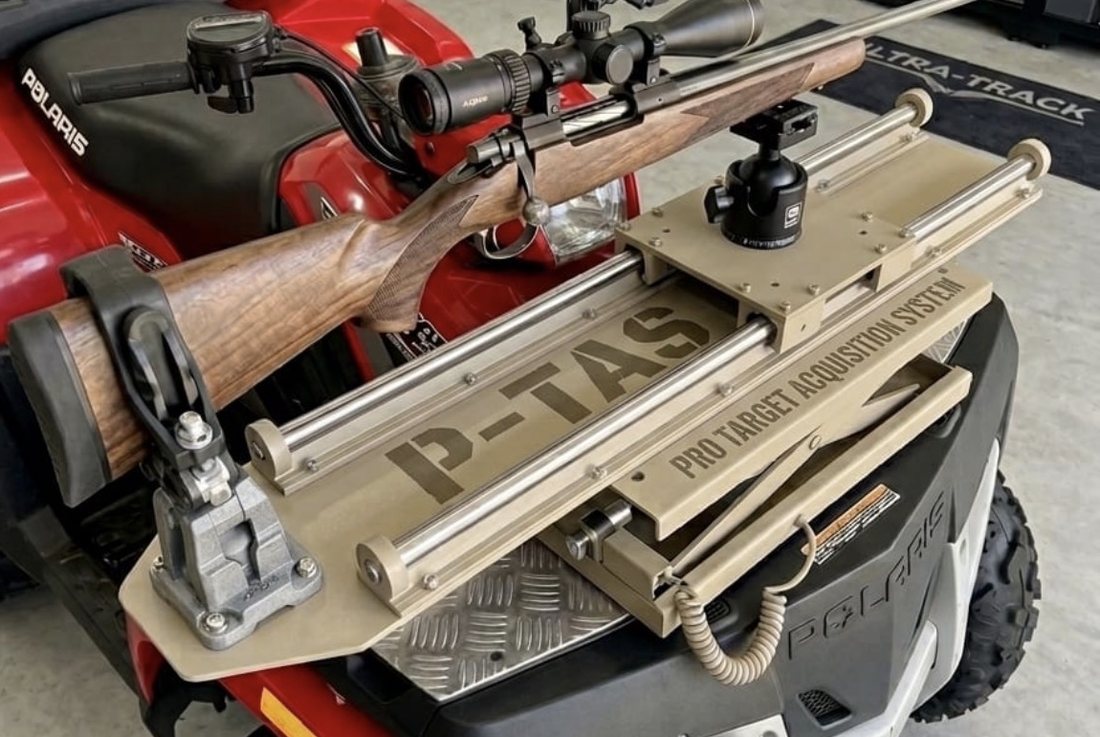

P-TAS — Desert Tan
P‑TAS — Desert TanSame P‑TAS, desert tan powder coat.

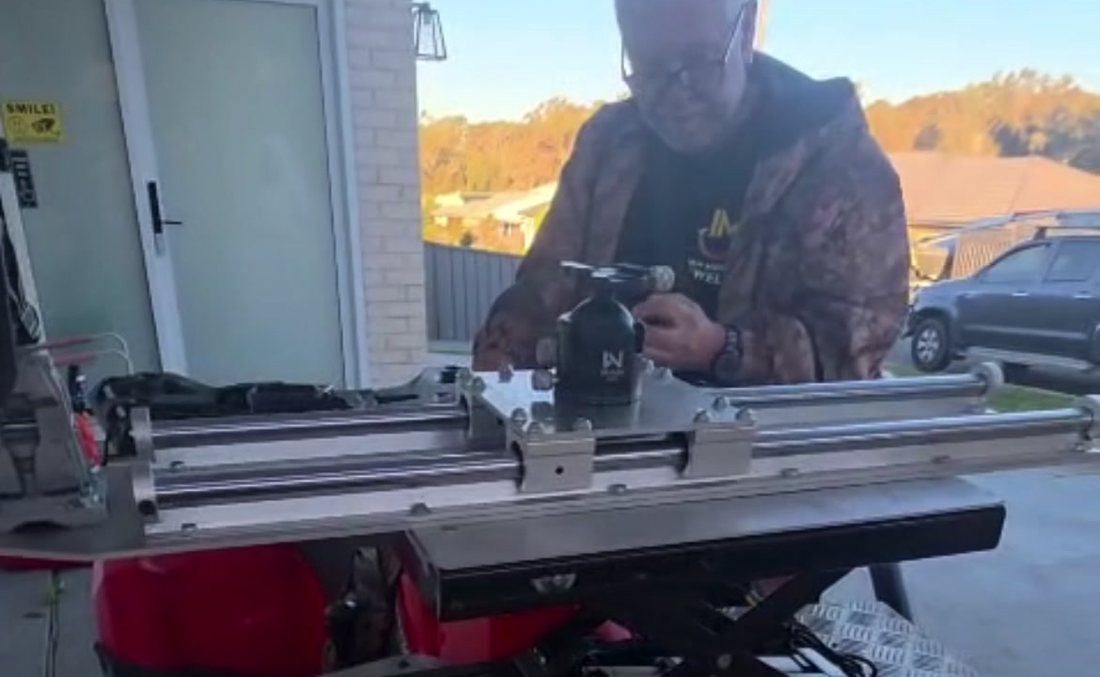

Prototype on the bench
Prototype on the benchIvan Mandelik with the bare-metal development prototype, before powder coat.
The P‑TAS elevator, runningWorkshop footage: the 12-volt electric elevator through its full range, then the rail traverse.
Coming soon
Drone footage — the quad and the P‑TAS in actionAerial footage of the P‑TAS working in the field.
Coming soon
Ivan Mandelik — the inventor explainsThe inventor talking through the P‑TAS, straight to camera.
Coming soon
Field hunting photosThe P‑TAS out on real ground, doing the job it was built for.

Seen enough? It’s alive.

First time offered, direct from the inventor. $1,800 AUD, GST included, freight calculated at checkout. Expected delivery by 31 January 2027.
